Parts for Kubota V3300 / INDIRECT injection
The order codes will be confirmed and verified by the seller, before placing the order or the actual purchase of the product.
Only the confirmed ones are in the seller's stock and can be delivered immediately.
- The set / a set, refers to / relates to 1 piston, never for the whole engine!
- Complete set: for example: * complete set of gaskets * refers to all seals needed to repair the engine
Complete piston - composition:
piston / diameter = 98 mm
segment set ( turbo ) / thick 2/2/3 mm ser.mot.> YY0471, or <YX0940
set segments / thickness 2/2/4 mm
piston bolt / diameter = 24 mm
bolt fuses x 2 pcs
Unmanned piston (without segment, bolt, sig.) :
piston diameter = 98 mm
segment set ( turbo ) / thick 2/2/3 mm or
set segments / thickness 2/2/4 mm
diameter for bolt = 24 mm
there are 2 different variants on STD!
Segment set (3 pcs / piston)
fire segments = 2 m
compression segments = 2 mm
lubrication segments = 3 or 4 mm
segment diameter = 98 mm
version R1: +0.50 mm
Complete piston order code:
STD turbo version: KUB92312
STD version: KUB92304
version R1: +0.50 mm
Piston control code (without bolt):
turbo version: KUB74126 /> YY0471
STD version: KUB63685 / <YX0940
version R1: +0.50 mm
Segment command code:
STD turbo version: KUB66969
pt. segm. 2/2/3 mm / ser.m.> YY0471
STD version: KUB63667
pt. segm. 2/2/4 mm / ser.m. <YX0940
Order code for connecting rod bearing set:
STD version: KUB79756
version R1: +20 mm KUB75730
version R2: +40 mm KUB79845
Bearing bearing set order code:
STD version: KUB63678
version R1: +20 mm KUB63679
version R2: +40 mm KUB93939
Axial bearing set order code:
STD version: KUB79750
STD version: KUB79751
there are 2 types of axial cuz.
Front Shaft Bushing Command Code:
distribution bushing (front):
Order code for the complete set of gaskets:
contains all gaskets for rep.
STD thickness version:
R1 thickness version:
R2 thickness version:
Rear shaft bushing control code:
steering wheel sleeve (rear):
Upper gasket set order code:
garn version. metal cylinder head
STD thickness version: KUB73854
non-metallic version: KUB56308
more versions> see engine series
Connecting rod order code:
STD version: KUB63671
Lower gasket set order code:
STD thickness version: KUB72905
R1 thickness version:
R2 thickness version:
Cylinder head gasket order code:
STD thickness version: KUB64928
thickness version R1: KUB64895
R2 thickness version:
Valve seal order code:
intake: KUB60465 / 7
evacuation: KUB75154 / 8

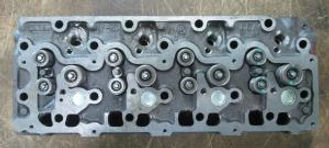

Cylinder head command code:
unequipped cylinder head:
Turbo equipped cylinder head: KUB75068
Shaft sealing order code:
distribution (front) KUB62863
steering wheel (back) KUB65767
Solenoid command code:
KUB74436
Electric motor control code:
Oil bulb order code:
STD version:
Power pump control code:
KUB52376
Alternator order code:
Injector order code:
KUB78171
Water pump control code:
KUB49671
Connecting rod command code:
STD version
KUB66571
Spark plug control code inc. :
version L = 72 mm
fillet: M10
Thermostat command code:
version d54 / h54 mm
KUB67633
version d54 / h61 mm
Piston bolt command code:
STD version:
KUB63669
